Preamble:
In the pharmaceutical industry, ensuring product safety and maintaining a sterile environment are paramount.
One essential piece of equipment used for these purposes is the isolator. Isolators play a crucial role in protecting both the product and operators from contamination.
This article explores the types of Isolators, role and importance, working principle of isolators and their significance in the pharmaceutical industry.
1. Definition and Purpose of Isolators:
An isolator is a closed system used to handle hazardous or sensitive substances, such as pharmaceutical compounds, in a controlled and isolated environment.
Its primary purpose is to create a barrier between the product and the surrounding environment, preventing any potential contamination from entering or exiting the controlled space.
Isolators are commonly used in pharmaceutical manufacturing, research laboratories, and QC microbiology lab and Aseptic filling.
2. Types of Aseptic Isolator:
Aseptic isolators are specialized types of isolators designed specifically for aseptic processing in the pharmaceutical industry.
They provide a controlled and sterile environment to prevent contamination during the handling, manufacturing, and packaging of sterile pharmaceutical products.
There are several types of aseptic isolators commonly used in the industry. Here are some of the main types:
A. Glove-Sleeve Isolators:
Glove-sleeve isolators are the most basic type of aseptic isolators. They consist of a sealed enclosure with integrated gloves attached to sleeves.
Operators insert their hands into the gloves to perform manipulations inside the isolator while maintaining a sterile barrier. Glove-sleeve isolators are often used for small-scale operations or in laboratories.
B. Restricted Access Barrier Systems (RABS):
RABS is a more advanced type of aseptic isolator system that provides a higher level of protection and control.
It consists of a physical barrier, typically made of transparent material, separating the process area from the operator. The operator can access the process area through glove ports or transfer systems while maintaining a controlled and sterile environment.
RABS often incorporates air filtration systems and environmental control features to maintain aseptic conditions.
C. Closed Restricted Access Barrier Systems (cRABS):
cRABS is an enhanced version of RABS, designed to provide an even higher level of containment and sterility assurance.
It includes additional features such as automatic door systems, interlocking mechanisms, and integrated environmental monitoring systems. cRABS minimize operator intervention by automating processes and reducing the risk of human error and contamination.
D. Biocontainment Isolators:
Biocontainment isolators are specialized isolators used for handling highly potent or hazardous materials, such as cytotoxic drugs or infectious agents.
These isolators provide a complete containment system to protect operators and prevent the release of dangerous substances into the environment. Biocontainment isolators typically feature advanced filtration systems, airlock chambers for material transfer, and rigorous decontamination procedures.
E. Mobile Isolators:
Mobile isolators are portable aseptic isolators that can be easily moved and repositioned within a facility. They offer flexibility in terms of location and adaptability for different processes.
Mobile isolators often incorporate wheels or casters for easy maneuverability and can be connected to facility utilities for environmental control.
It's worth noting that these isolator types can vary in design and configuration based on specific requirements and applications. Each type offers distinct advantages in terms of sterility assurance, operator safety, and contamination control.
The selection of the appropriate aseptic isolator depends on the specific needs of the pharmaceutical process and the level of protection required.
3. Physical Structure and Design:
Isolators are typically constructed using materials that are resistant to corrosion, such as stainless steel or other chemically inert materials.

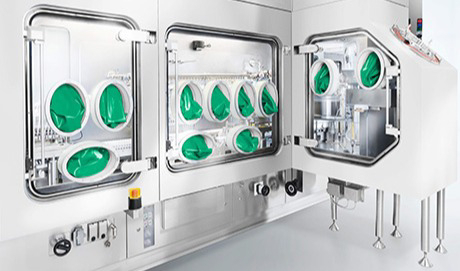

The isolator is a sealed enclosure with integrated gloves, allowing operators to manipulate the contents without direct contact. These gloves are attached to glove ports or sleeves, ensuring a sealed barrier while enabling manual dexterity.
Isolators also include high-efficiency particulate air (HEPA) filters, which remove airborne particles and microorganisms, maintaining a clean and sterile environment. Additionally, isolators are equipped with airlocks or transfer systems, enabling the safe introduction and removal of materials and products without compromising the isolation.
4. Working Principle:
The working principle of isolators involves three key elements:
A. Containment:
Isolators create a physical barrier between the product and the external environment. This barrier prevents the entry of contaminants, such as dust, microorganisms, or volatile chemicals, which could compromise the quality and safety of the pharmaceutical product.
Similarly, it prevents the release of hazardous substances from within the isolator, protecting operators and the environment.
B. Control:
Isolators maintain a controlled environment within the enclosure. This control involves various parameters, such as temperature, humidity, pressure differentials, and air quality.
These parameters are carefully regulated to ensure optimal conditions for the product being handled. By controlling these factors, isolators help to minimize the risk of microbial growth, cross-contamination, and degradation of sensitive substances.
C. Decontamination:
Isolators are designed to be easily decontaminated. Before and after each use, the isolator undergoes a thorough cleaning and decontamination process.
This process typically involves disinfection with appropriate agents and may include procedures such as vaporized hydrogen peroxide (VHP) sterilization. Decontamination ensures that any potential contaminants are eliminated, maintaining the integrity of the product and the safety of personnel.
5. Applications and Benefits:
Isolators find widespread use in various pharmaceutical applications, including aseptic processing, handling of cytotoxic drugs, and containment of highly potent compounds. They offer several benefits, such as:
A. Product Protection:
Isolators play a critical role in protecting pharmaceutical products from contamination. In sensitive manufacturing processes, such as aseptic filling of injectable drugs, isolators provide an airtight environment to maintain sterility.
They utilize high-efficiency particulate air (HEPA) filters to remove airborne particles, bacteria, and other contaminants, thereby safeguarding the integrity of the product.
B. Operator Safety:
One of the primary reasons isolators are extensively used in the pharmaceutical industry is to ensure operator safety.
Many pharmaceutical compounds, especially highly potent drugs, pose health risks when exposed to humans. Isolators create a physical barrier between the operator and the hazardous materials, preventing direct contact and minimizing the risk of exposure.
They often feature airlock systems that allow operators to safely transfer materials in and out of the isolator without compromising containment.
C. Environmental Protection: Isolators provide precise control over environmental parameters, including temperature, humidity, and air quality. These controlled conditions are essential for maintaining product stability and integrity. Pharmaceutical processes often require specific environmental conditions to ensure the quality of the final product, and isolators contribute to achieving and maintaining these conditions.
D. Contamination Control:
The stringent control and decontamination procedures employed in isolators help maintain a high level of cleanliness and prevent cross-contamination between different products or batches.
Inference:
Isolators are critical components in the pharmaceutical industry, ensuring the protection of products, operators, and the environment. By employing a combination of physical barriers, environmental control, and decontamination processes, isolators effectively minimize the risk of contamination and maintain the integrity of pharmaceutical products.
Their ability to create a controlled and isolated environment makes them invaluable in various applications, ranging from aseptic processing to handling hazardous substances.
As the pharmaceutical industry continues to advance, the demand for improved safety, sterility, and product quality remains high. Isolators play a vital role in meeting these requirements by providing a robust barrier against contaminants, controlling critical environmental parameters, and facilitating effective decontamination processes. Manufacturers and researchers rely on isolators to ensure the safety and efficacy of their products, while regulatory bodies enforce strict guidelines to ensure compliance with industry standards.
The ongoing development of isolator technology aims to enhance their performance and versatility. This includes advancements in material design, such as the use of innovative coatings that provide superior corrosion resistance and easier cleaning. Additionally, the integration of advanced monitoring and control systems allows for real-time monitoring of critical parameters, ensuring optimal conditions throughout the manufacturing or handling process.
In conclusion, the working principle of isolators in the pharmaceutical industry revolves around containment, control, and decontamination. By creating a barrier, maintaining environmental control, and facilitating effective decontamination procedures, isolators play a crucial role in protecting pharmaceutical products, operators, and the environment. Their widespread use and ongoing technological advancements demonstrate their indispensable contribution to maintaining product safety and quality in the pharmaceutical industry.
